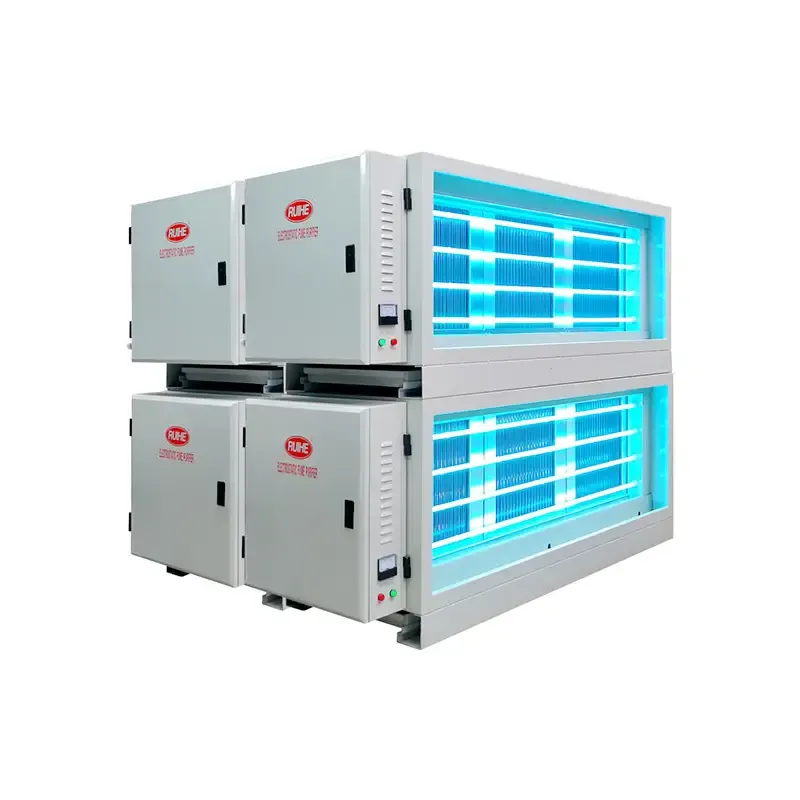

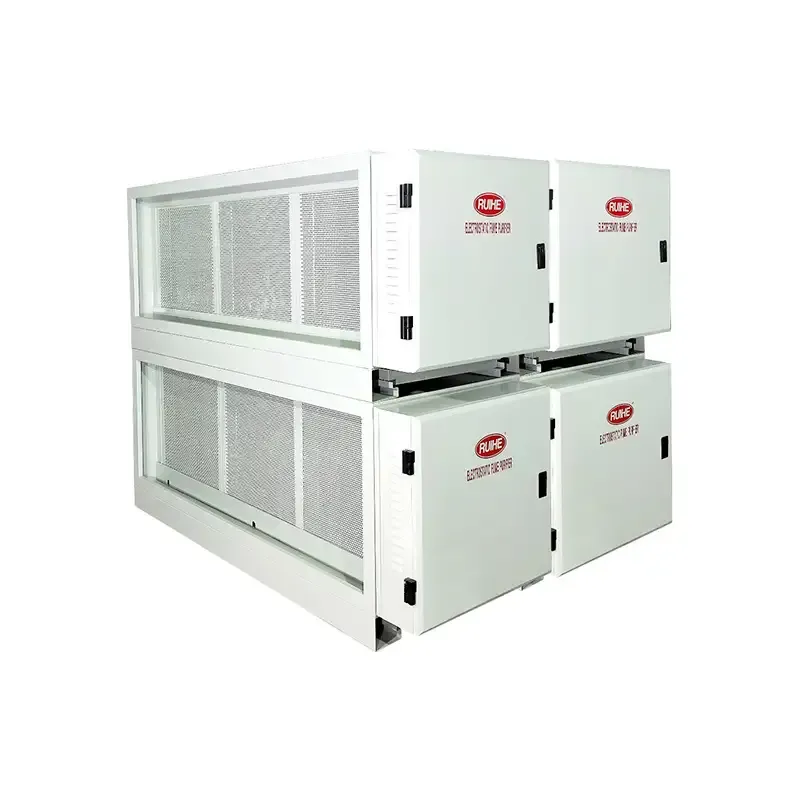

Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter DGRH-K-2-21000 Double Pass
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-2-21000 / DGRH-K-2-21000U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission
"RUIHE double pass electrostatic precipitator is designed for commercial cooking fume, odour capture and management. Over 98% removal rate ESP. It includes a collector cell combination of high voltage and low voltage section. With advantages of low pressure drop, there will be lower energy cost to operate it. "
Specification
Smoke Removal Rate Ruihe Restaurant Exhaust Smoke Filter DGRH-K-2-21000 Double Pass Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-2-21000 | 18000-21000 | 1280*1835*1460 | 1560*1260 | >98% | <100 | 1680 | 488 | W/O UV-C tube,double pass |
| 2 | DGRH-K-2-21000U | 18000-21000 | 1280*1835*1460 | 1560*1260 | >98% | <100 | 4080 | 516 | W/ 16*UV-C tube,double pass |
Advantage
- Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
