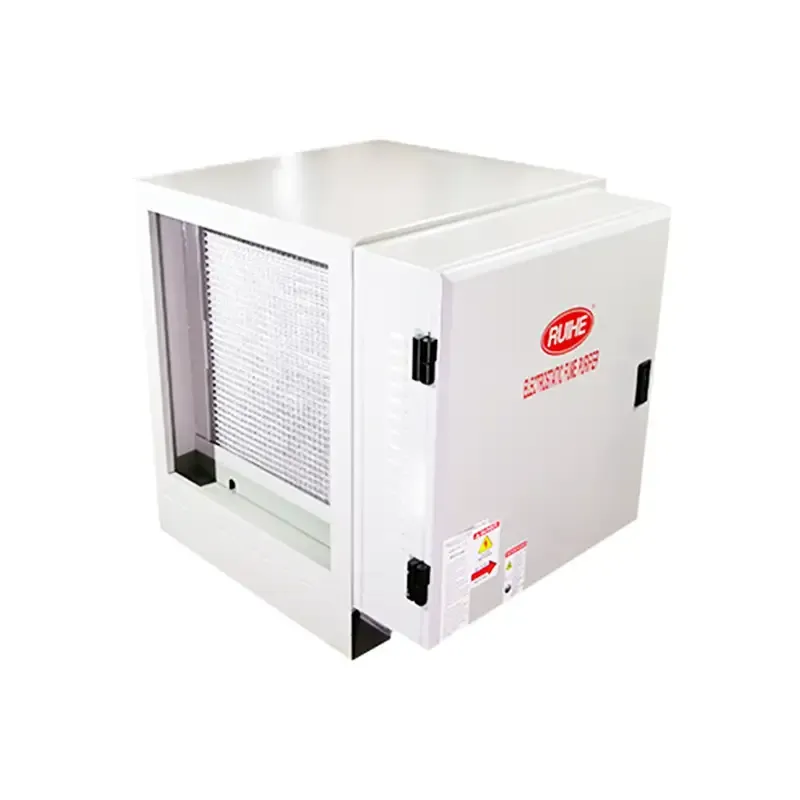

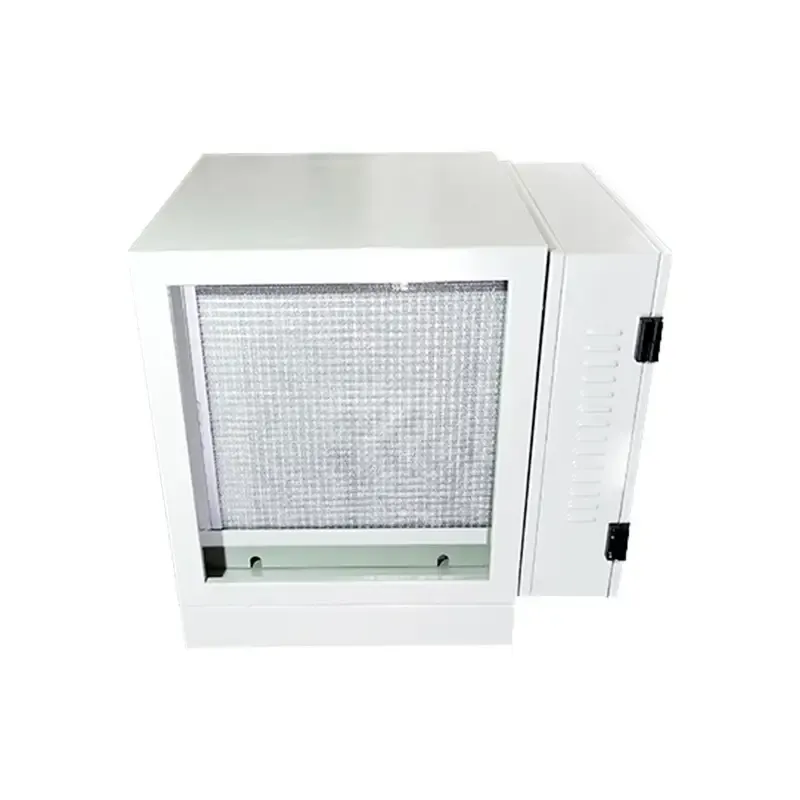

Electrostatic Precipitator (ESP) for kitchen- High Altitude Air Emission DGRH-K-3500
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-3500 / DGRH-K-3500U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator (ESP) - High altitude air emission
Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. With RUIHE ESP system, you will not have trouble with both city inspectors and your commercial & residential neighbors.
Specification
Electrostatic Precipitator (ESP) for kitchen- High Altitude Air Emission DGRH-K-3500 Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-3500 | 3000-3500 | 640*765*730 | 485*530 | 90-93% | <150 | 160 | 60 | W/O UV-C tube, single pass |
| 2 | DGRH-K-3500U | 3000-3500 | 640*765*730 | 485*530 | 90-93% | <70 | 240 | 63 | W/ 2*UV-C tube,single pass |
Features
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.

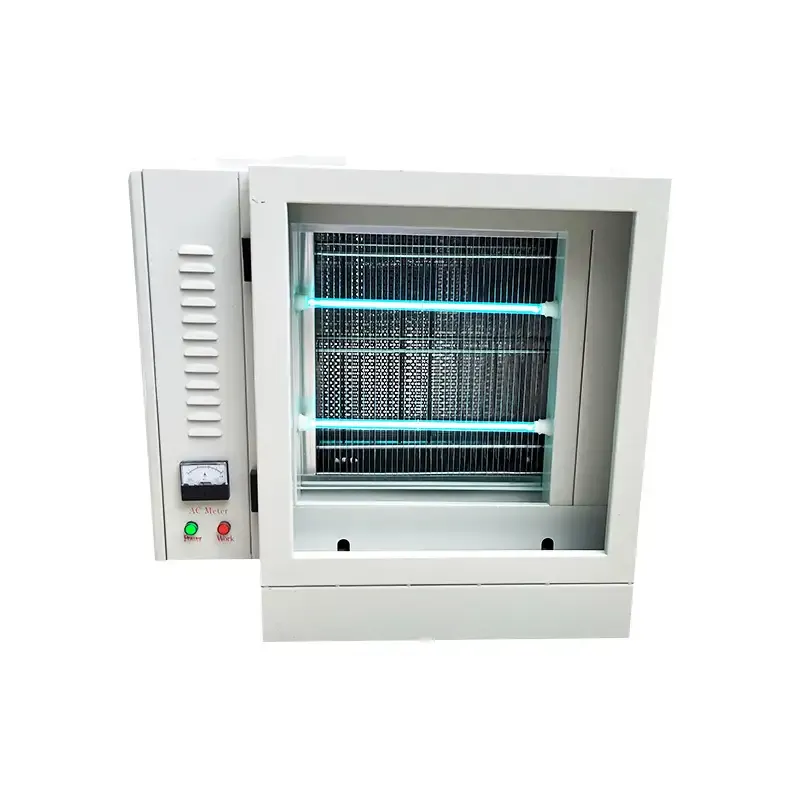

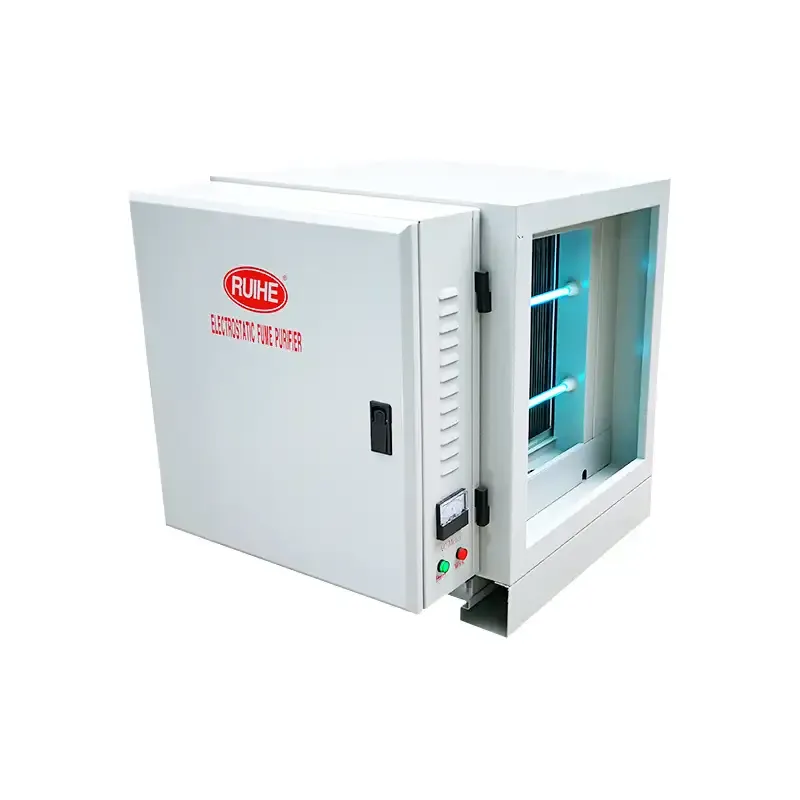

- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
