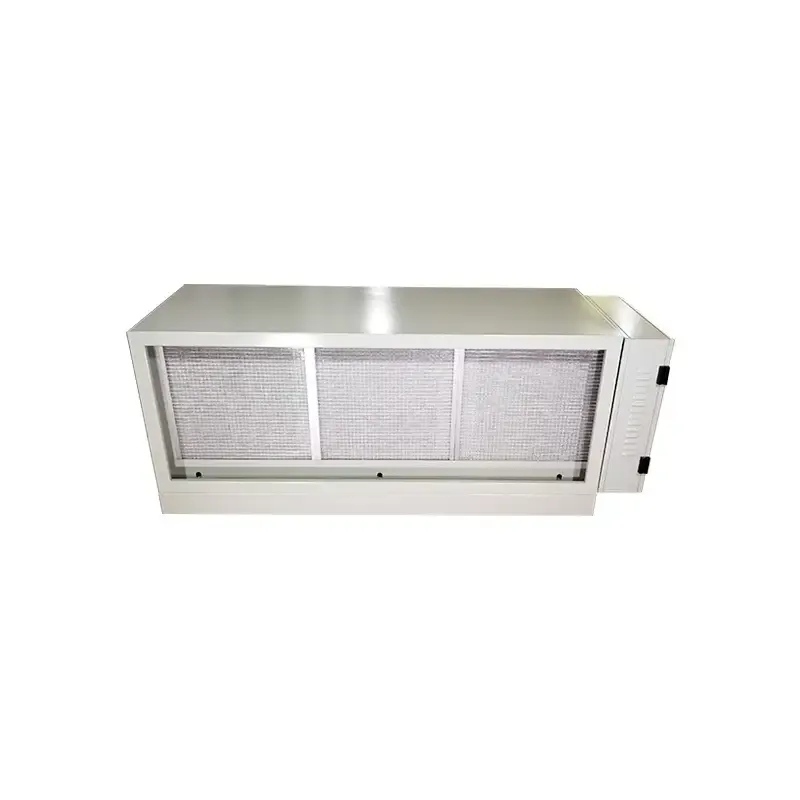

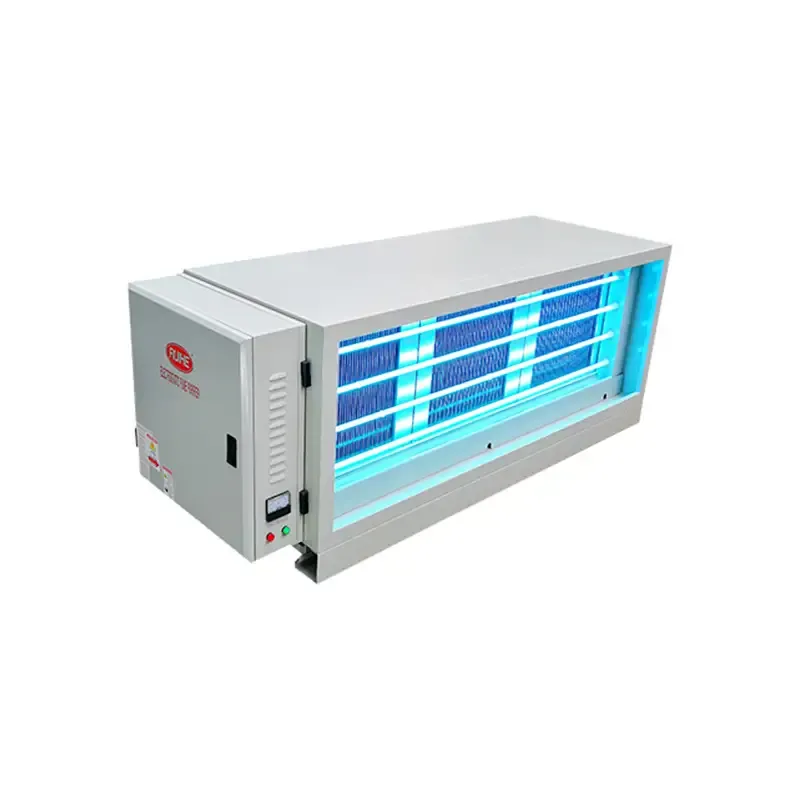

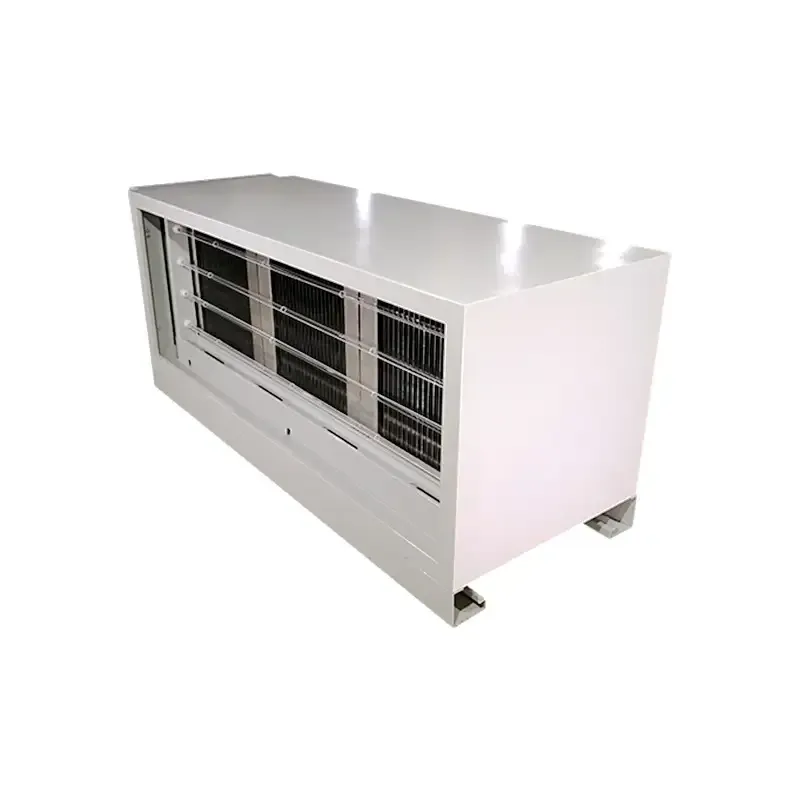

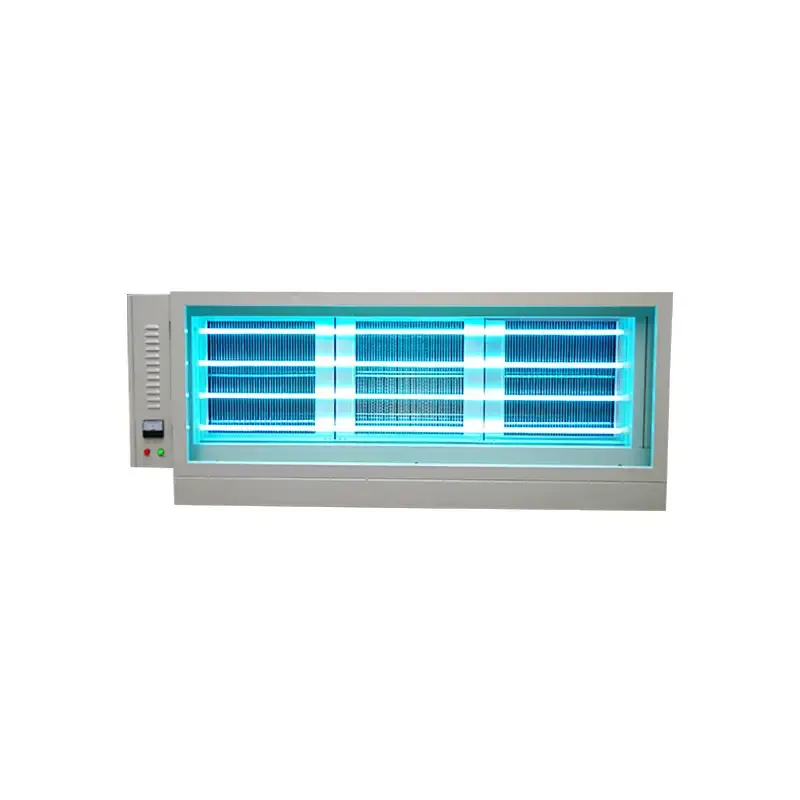

New ESP Commercial Kitchen Electrostatic Precipitator DGRH-K-10500 single pass
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-10500 / DGRH-K-10500U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator (ESP) - High altitude air emission
Commercial Kitchen cooking fume contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is to alleviate the environmental impact of commercial kitchen exhaust emissions greatly.
Specification
New ESP Commercial Kitchen Electrostatic Precipitator DGRH-K-10500 single pass Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-10500 | 9000-10500 | 640*1835*730 | 1560*530 | 90-93% | <100 | 420 | 122 | W/O UV-C tube, single pass |
| 2 | DGRH-K-10500U | 9000-10500 | 640*1835*730 | 1560*530 | 90-93% | <100 | 1020 | 129 | W/ 4*UV-C tube,single pass |
Advantage
- Dirty air is double pass. Up to 90-93% Smoke, grease particles removal efficiency rate
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
