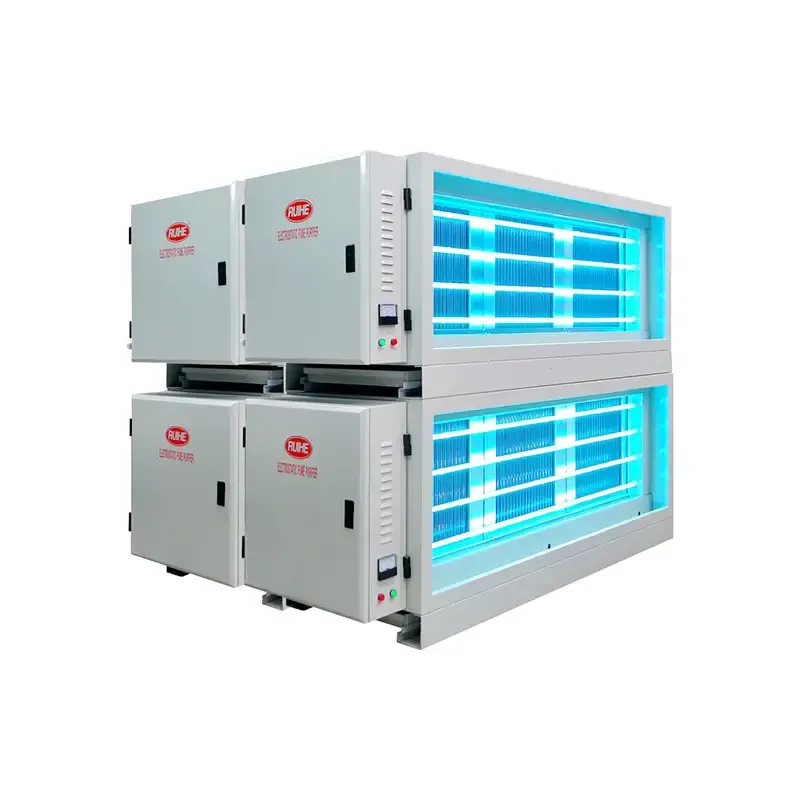

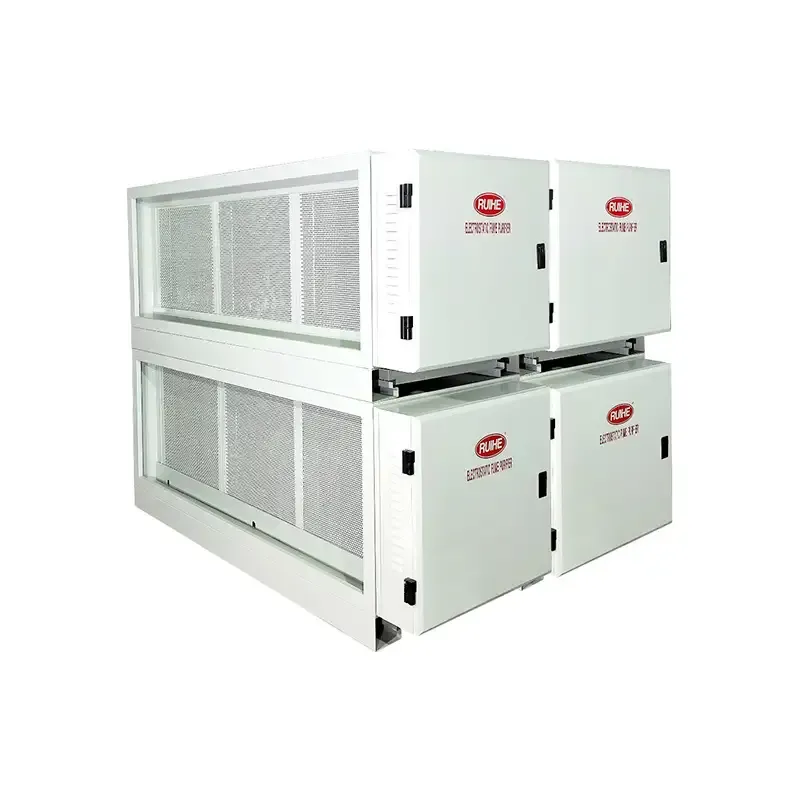

ESP Fume Clean For Commercial Kitchen DGRH-K-2-14000 Double Pass
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-2-14000 / DGRH-K-2-14000U
Certification:
CE, RoHS, ISO9001:2015
As there would be issue if cooking exhaust and nuisance odours can not be control well, it wil lead to complaints from nearby residents and your commercial neighbors. With this in mind, RUIHE double pass ESP series will help you to solve these problem. Grease, smoke and odour particles will be captured efficiently.Over 98% removal efficiency rate ESP ensures air emission at low altitude street level!
Specification
ESP Fume Clean For Commercial Kitchen DGRH-K-2-14000 Double Pass Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-2-14000 | 12000-14000 | 1280*1300*1460 | 1020*1260 | >98% | <100 | 1120 | 376 | W/O UV-C tube, double pass |
| 2 | DGRH-K-2-14000U | 12000-14000 | 1280*1300*1460 | 1020*1260 | >98% | <100 | 2320 | 396 | W/ 12*UV-C tube,double pass |
Advantage
- Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
