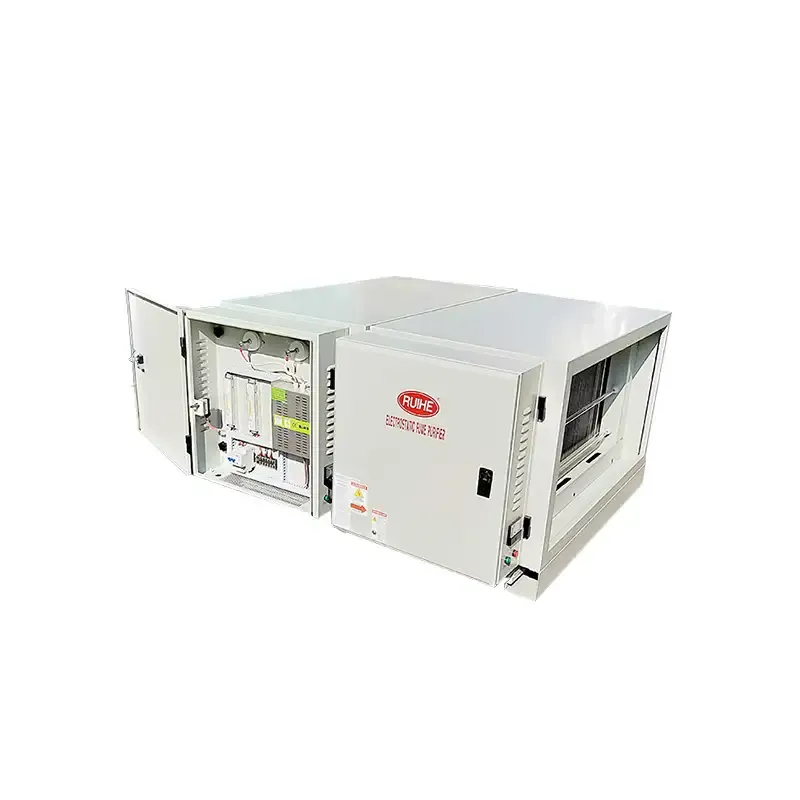

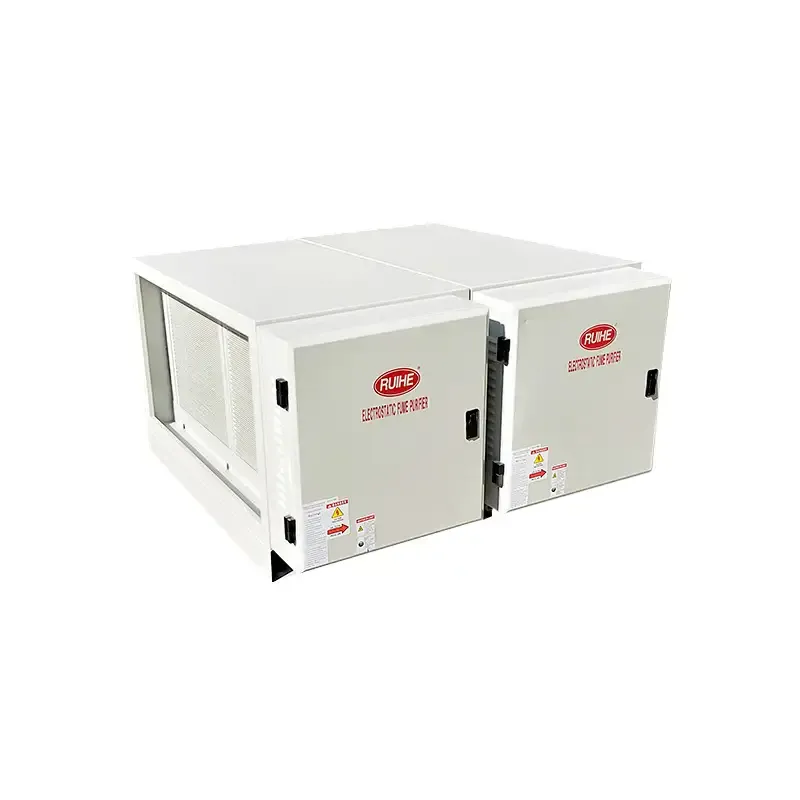

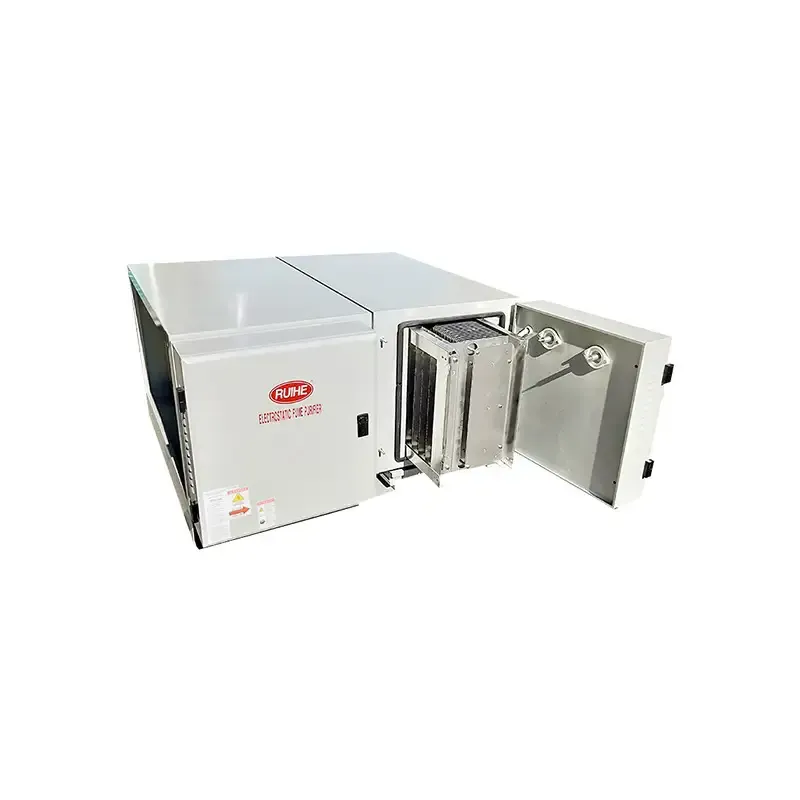

Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting DGRH-K-2-7000 Double Pass
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-2-7000 / DGRH-K-2-7000U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission
Commercial Kitchen Exhaust contains grease, smoke and odors which can be filtered efficiently to meet local air quality environmental protection standards. RUIHE ESP system is ideal for the removal of these particles from commercial cooking applications, as well as oil mist from industrial processes. Double pass models will help you to remove them more efficiently!
Specification
Smoke Removal Rate RuiHe ESP Kitchen Lampblack Collecting DGRH-K-2-7000 Double Pass Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-2-7000 | 6000-7000 | 1280*1300*730 | 1020*530 | >98% | <100 | 560 | 188 | W/O UV-C tube, double pass |
| 2 | DGRH-K-2-7000U | 6000-7000 | 1280*1300*730 | 1020*530 | >98% | <100 | 1160 | 198 | W/ 6*UV-C tube,double pass |
Features
- Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
