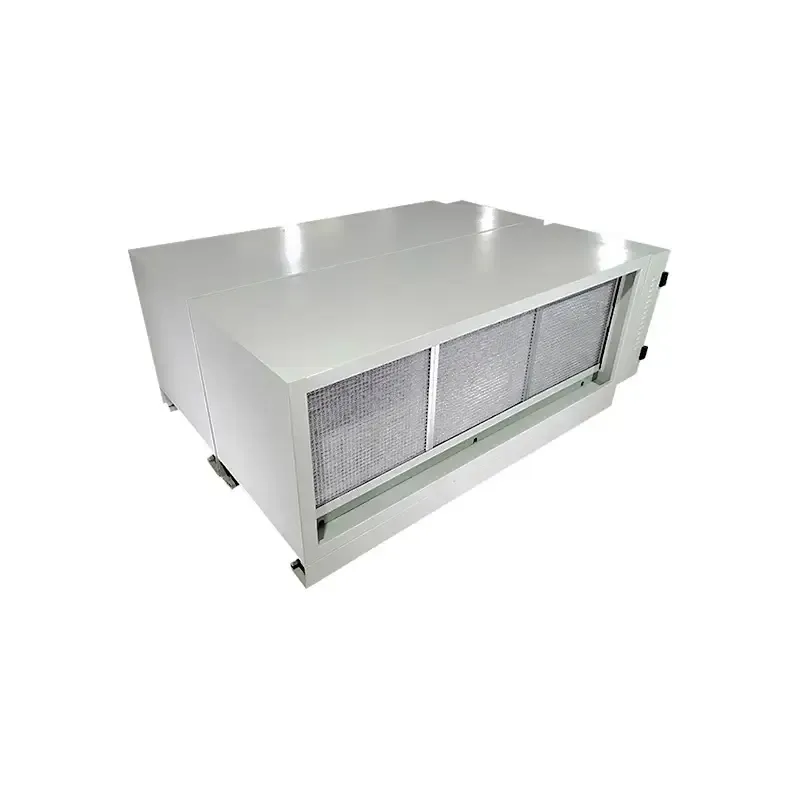

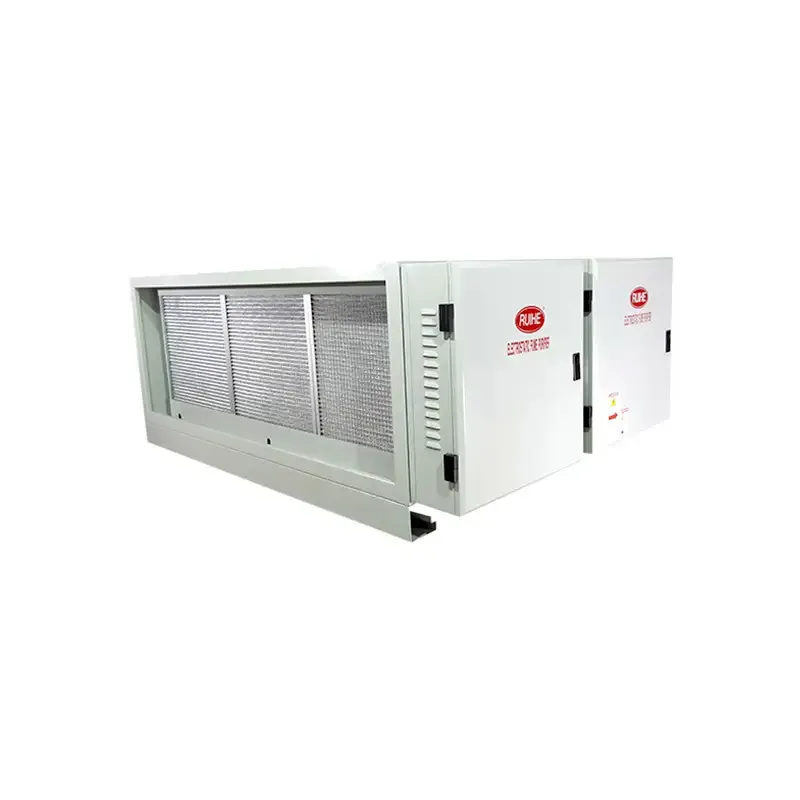

High Quality Commercial Kitchen Electrostatic Precipitator (ESP) DGRH-K-2-10500 Double pass
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-2-10500 / DGRH-K-2-10500U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator （ESP）- Low altitude air emission
How to control commercial catering kithen cooking exhaust efficiently? How can a new commercial kitchen choose the right cooking fume, odour machine at the first time? RUIHE double pass electrostatic precipitator is the best solution! RUIHE ESP gets things right at the first time. When ESP turns on, duct outlet belches smokeless air.We ensure its quality and excellent performance!
Specification
High Quality Commercial Kitchen Electrostatic Precipitator (ESP) DGRH-K-2-10500 Double pass Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-2-10500 | 9000-10500 | 1280*1835*730 | 1560*530 | >98% | <100 | 840 | 244 | W/O UV-C tube, double pass |
| 2 | DGRH-K-2-10500U | 9000-10500 | 1280*1835*730 | 1560*530 | >98% | <100 | 2040 | 258 | W/ 8*UV-C tube,double pass |
Advantage
- Dirty air is double pass. Smoke, grease particles removal efficiency rate is over 98%. Allows for discharge at street level and into public spaces outdoors.
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement, reduce maintenance and replacement cost.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
