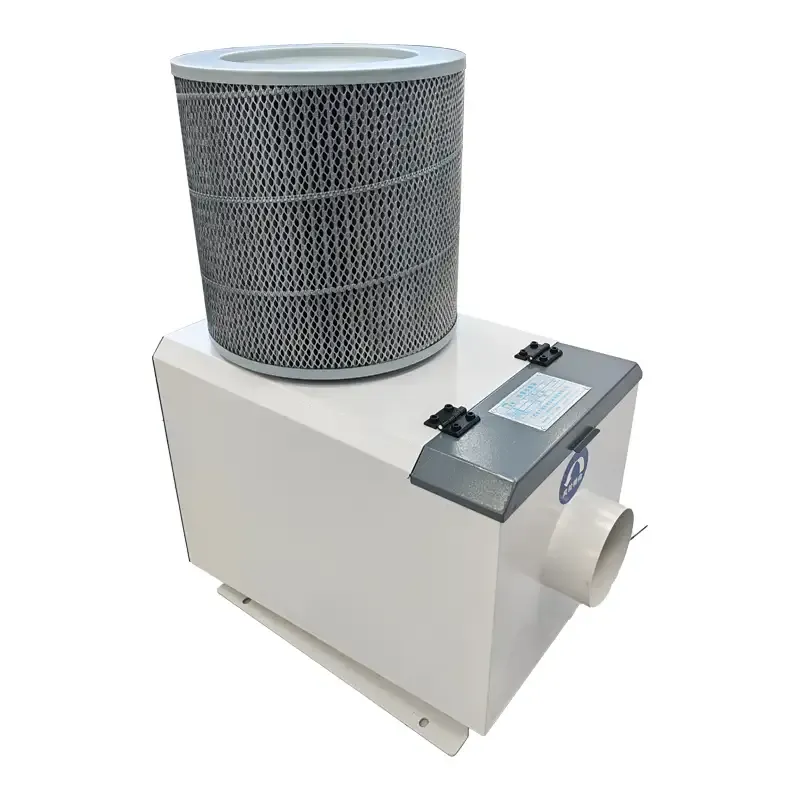

oil mist collector DGRH-KC-250B
RUIHE designs the direct source capture of various airborne contaminants equipment - oil mist collector. It is an efficient and cost-effective way to remove nuisance or hazardous contaminants from the workplace to meet the specific standards of your unique plant.
When machining is operating, there are potential health hazards and risks. They associated with the oil and water based cutting fluids that are used as coolants and lubricants. Metalworking applications such as cutting, sawing, polishing, and grinding along with the use of these cutting fluids produces an oil mist that is sent airborne. Oil mist will cause great health risks resulting from long term exposure. Facilities also are at risk of physical hazards to the worker such as slippery floors. Oil mist collector ensures almost total collection of these pollutants, responding to local legislation. It is essential to build a safe working environment. Thus, we will help you to control containment of floating mist properly by oil mist collector.

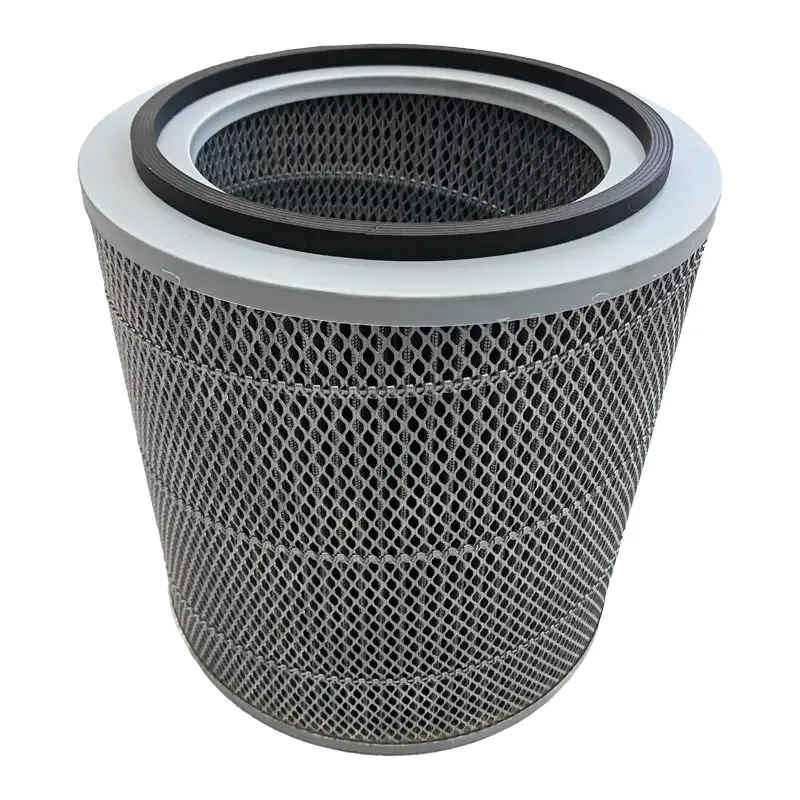

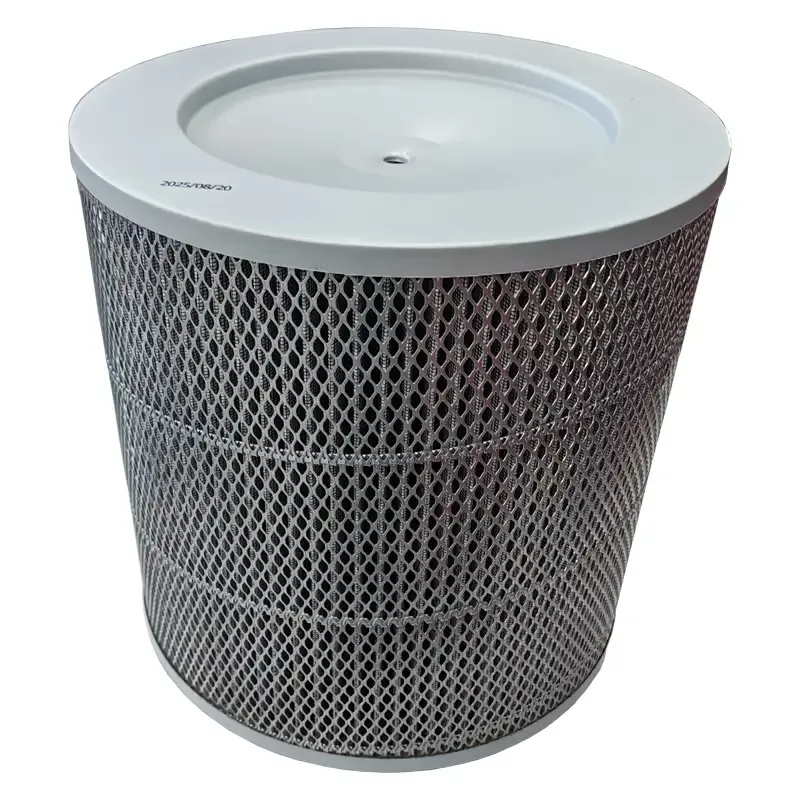

Oil mist collector collects the contaminant airstream into the collector cell. It will drop out large mist or other particles. Oil mist will be collected and drained into a oil sump. The airstream then turns and passes up while the clean air is exhausted through the top of the unit. Oil, mist, smoke, and vapor removal efficiency to 95- 99.9%.
Depending on your plant requirements, modular designed oil mist collectors can be stacking vertically and horizontally to extend an unlimited air flow and higher removal efficiency! Let us know your standards that you would like your equipment built to, then we provide a correct oil mist collector that meets those standards at affordable price.
Start a plan today for solving your air contamination problems by contacting a RUIHE environmental oil mist collection expert via email or a call. View Case
Specification
oil mist collector DGRH-KC-250B Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (Diameter mm) | Removal efficiency Rate | Wind Resistance (PA) | Power (Watt) |
|---|---|---|---|---|---|---|---|
| 1 | DGRH-KC-250B | 500-1000 | ∅380*760 | ∅ 100 | 98% | <100 | 250 |
| 2 | DGRH-KC-370B | 800-1100 | ∅380*780 | ∅ 150 | 98% | <100 | 370 |
| 3 | DGRH-KC-750B | 1100-1400 | ∅380*820 | ∅ 150 | 98% | <100 | 750 |
| 4 | DGRH-KC-370A | 800-1000 | 550*350*670 | ∅ 100 | 98% | <100 | 370 |
| 5 | DGRH-KC-750A | 1100-1400 | 550*370*720 | ∅ 150 | 98% | <100 | 750 |
| 6 | DGRH-KC-1100A | 1400-1600 | 550*370*720 | ∅ 150 | 98% | <100 | 1100 |
| 7 | DGRH-KC-1500A | 1700-1900 | 680*410*850 | ∅ 150 | 98% | <100 | 1500 |
| 8 | DGRH-KC-2200A | 2200-2500 | 680*410*850 | ∅ 150 | 98% | <100 | 2200 |
Features
- Provides a healthy working environment for employee
- Collector cell is easy to install, maintain and clean.
- Avoid breakdown electrical parts of machines that caused by oil mist.
- Air flow: 500-2500 CMH.
- Maintain high productivity of equipment
