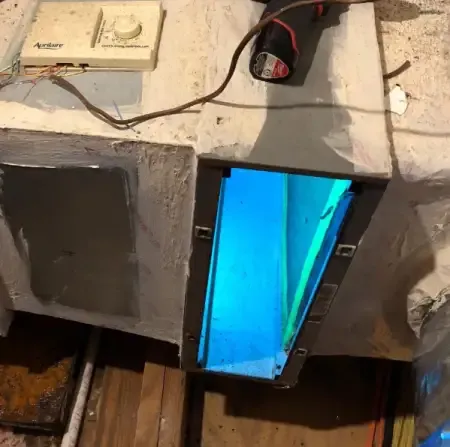

Duct mounted Germicidal UV-C Lamp
Disinfection Viruses for Air handling units, ecology unit, air handler This product is designed to help disinfect the internal surfaces of heating, ventilation, and air conditioning systems.
Air Disinfection

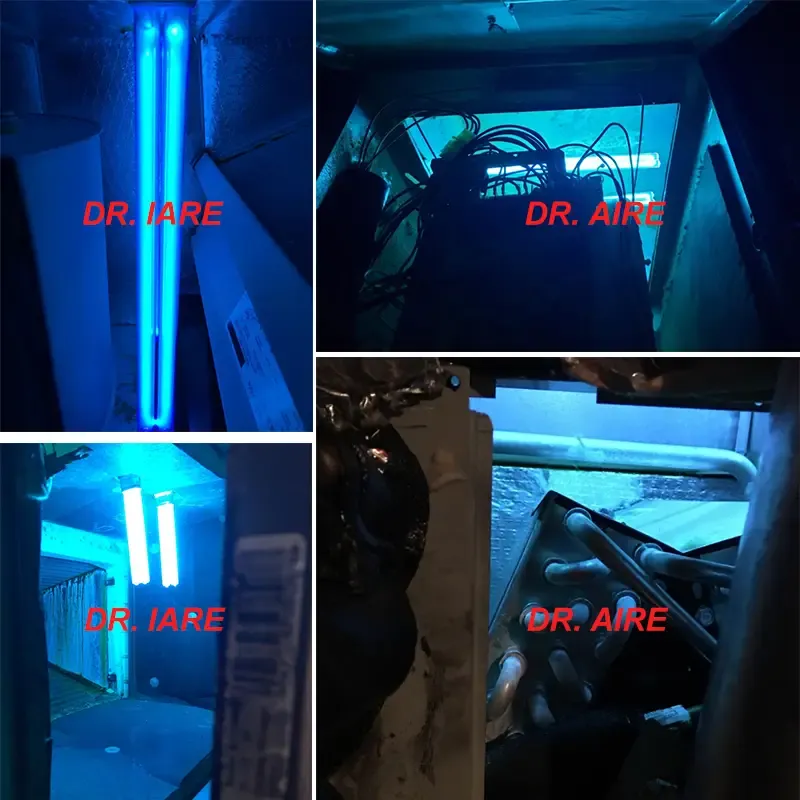

Germicidal UV lamps installed in air conditioning systems protect occupants from harmful airborne micro-organisms including bacteria, moulds, viruses and Legionnaires Disease in new and old ducts.Killed 99
Models are also available for portable use, fixed to walls and included in all air conditioning systems. Ultra-violet air disinfection is used extensively in the Food and Dairy Industries, Hospitals, Laboratories, Operating Theatres, Office Buildings, Pharmaceutical Manufacturing, Casinos, Hotels, Mortuaries and Surgeries.
UV/Ozone in cooking ducts
(This is ozone option - 185 nanometers. Standard HVAC UV lamps are ozone free models)
Control of grease, smoke and odour in commercial kitchens from cooking processes.
Installed in kitchen extraction ductwork in conjunction with filters, UV/Ozone lamps clean the exhaust ducts and hood interior for improved hygiene and reduced cleaning.
Destroys cooking odours, keeps ductwork almost grease free, reduces fire risk, reduces ductwork cleaning to a minimum and is completely automatic in operation.
Specification
Duct mounted Germicidal UV-C Lamp Specifications
| No. | Model | Air Flow (M³/H) | All over Size L*W*H (MM) | UV Qty (PCS) | UV length (PCS) | Total Power (W) | Operational hours (hours) | Power Supply |
|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-ETI-A01 | 500-1000 | 160*290*85 | 1 | 300 | 50 | 10,000 | 230VAC 50-60Hz |
| 2 | DGRH-ETI-A02 | 750-1500 | 160*290*85 | 1 | 450 | 80 | 10,000 | 230VAC 50-60Hz |
| 3 | DGRH-ETI-B01 | 1000-2000 | 200*290*85 | 2 | 300 | 100 | 10,000 | 230VAC 50-60Hz |
| 4 | DGRH-ETI-B02 | 1500-3000 | 200*290*85 | 2 | 450 | 160 | 10,000 | 230VAC 50-60Hz |
