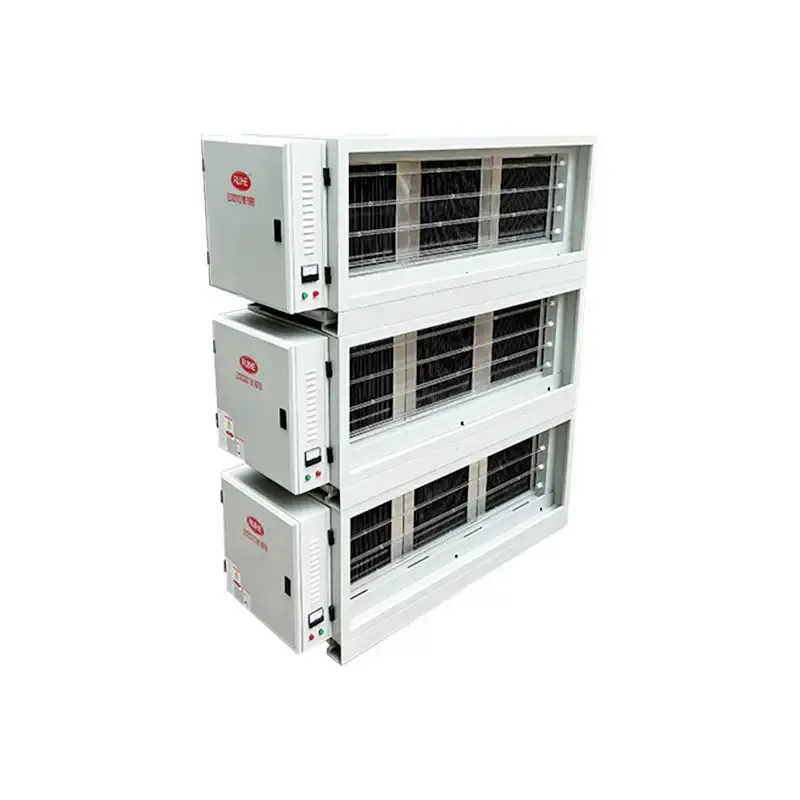

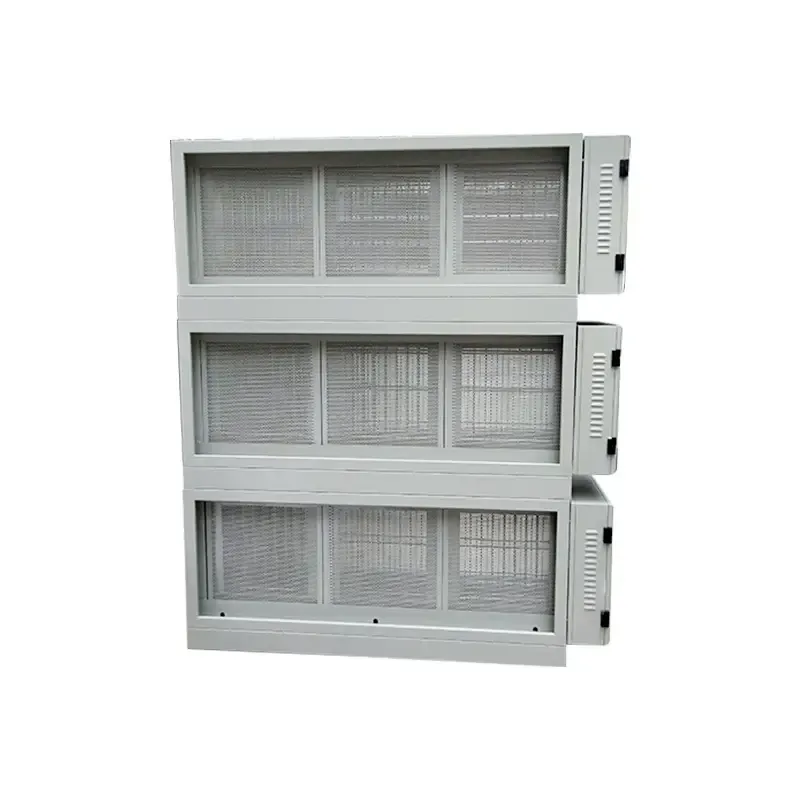

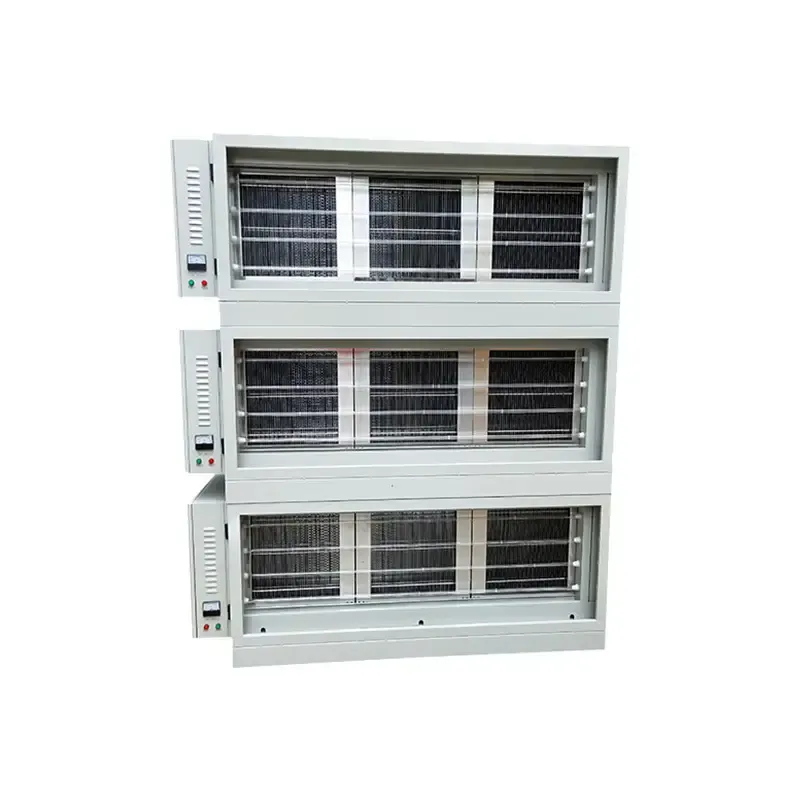

Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator DGRH-K-31500
Commercial kitchen electrostatic precipitator, Commercial kitchen esp, electrostatic precipitator, electrostatic air filter, electrostatic air cleaner, electrostatic air purifier, ecology unit, ESP, ESP COLLECTOR
Model:
DGRH-K-31500 / DGRH-K-31500U
Certification:
CE, RoHS, ISO9001:2015
Commercial kitchen electrostatic precipitator （ESP）- High altitude air emission
RUIHE ESP system ensures maximum effectiveness through the use of cooking fume filter and food odour control. Commercial Kitchen Exhaust contains grease, smoke and food odors which can be filtered efficiently to meet city air quality environmental protection standards. RUIHE ESP system unit which is weatherproof can be install indoor and outdoor.
Specification
Commercial Kitchen Air Cleaner Filter Electrostatic Precipitator DGRH-K-31500 Specifications
| No. | Model | Air Flow (M³/H) | Cabinet Size L*W*H (MM) | Flange Size (W*H) | Removal efficiency Rate | Wind Resistance (PA) | Power(Watt) | Net Wight(KG) | Remark |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DGRH-K-31500 | 27000-31500 | 640*1835*2190 | 1560*1990 | 90-93% | <100 | 1260 | 366 | W/O UV-C tube, single pass |
| 2 | DGRH-K-31500U | 27000-31500 | 640*1835*2190 | 1560*1990 | 90-93% | <100 | 3060 | 387 | W/ 12*UV-C tube,single pass |
Advantage
- Dirty air is double pass. Up to 90-93% Smoke, grease particles removal efficiency rate
- Modular in design: Easy installation, maintenance and cleaning.
- Cost effective & eco-friendly: Long life-span, minimum maintenance energy-saving and space-saving.
- Durable aluminum plate type collector cells. Saving 60-70% power than honeycomb models in the market.
- Durable stainles steel blade ionizers prevent common tungsten wire breakage and replacement.
- Intellegent electrostatic power control system: Electric intensity auto-control function ensures the unit maintains a high purification rate after a long time service.
- Safety and Stability: (1) Door-open power-off protection, (2) Over-current, voltage & temperature protection
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odour removal efficiently with UV-C filter systems.
